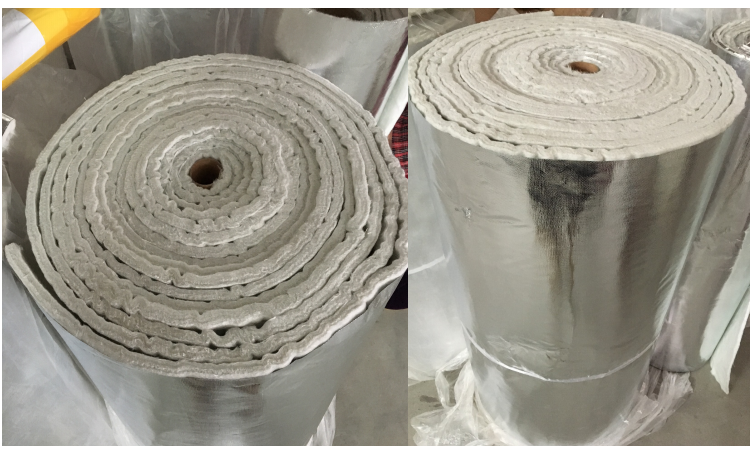

Aluminum Foil Composite Glass Fiber Needle Blanket

Aluminum Foil Composite Glass Fiber Needle Blanket

Introduction

Glass fiber needle blanket use E-glass fiber as raw material, through thousands of special needle puncture and finally produced, being flexible and with good tensile strength. It belongs to inorganic fiber, not burn. It works below 700℃, fireproof, heat and electric insulation, no asbestos and formaldehyde. When glass fiber needle blanket laminated aluminum foil, the insulation effect will be strengthened. Also we cut it to tape, use it to replace asbestos products.

Material Composition:

Silica, aluminum oxide and calcium oxide, aluminum foil

Characteristics:

1. 700℃ high temperature resistance, heat insulation, fireproof

2. good tensile strength, flexible, aging resistance

3. corrosion resistance, no mildew, no moth, non absorbent

4. sound absorption, electric insulation, shockproof

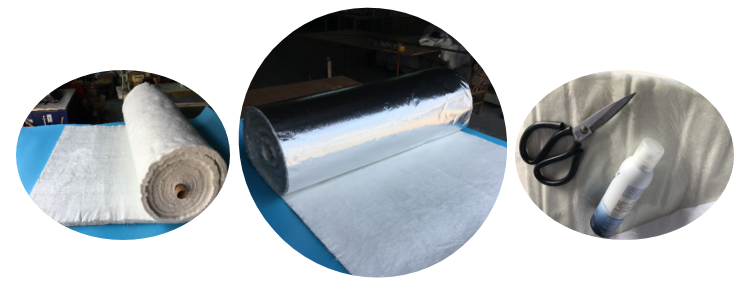

5. easy to cut and sew as customize

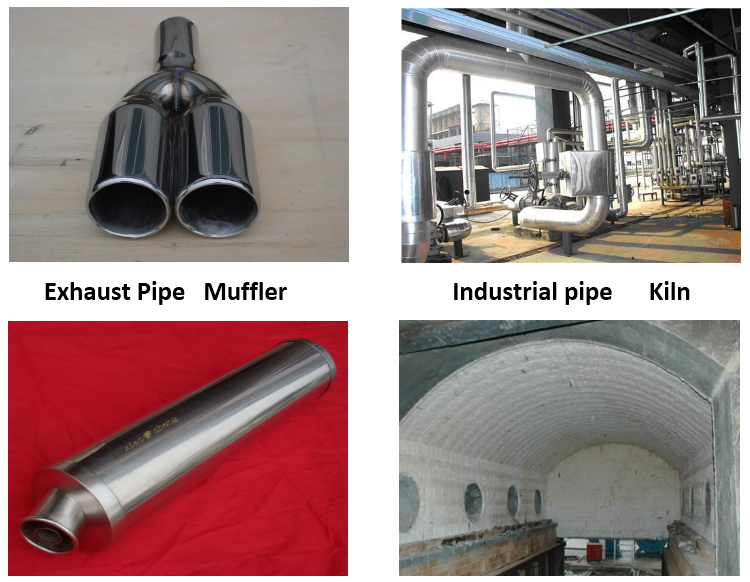

Application:

1. heat insulation and noisedamping material in buildings and air-conditioning pad;

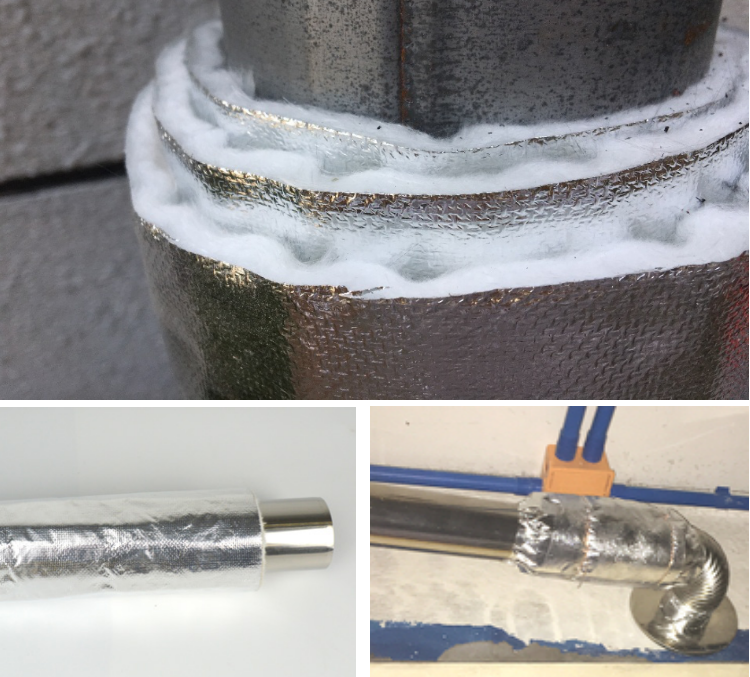

2. Insulation for hot and cold pipes and underground pipelines.

3. protection and heat insulation of car roof, hood and exhaust;

4. sound insulation of silencer;

5. high-temperature equipment insulation in shipping, boiler and appliance industry.

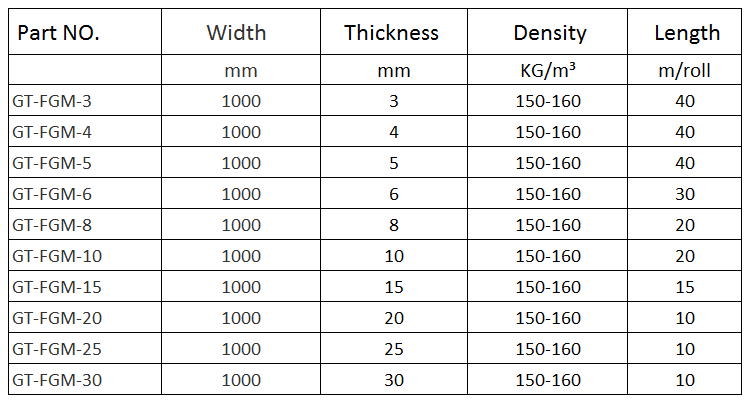

Specification:

Name

Thermal Conductivity

Tensile Strength

 Refraction Coefficient(25℃)

Elastic Coefficient

Crosswise Tensile-Strength

Portrait Tensile-Strength

 Density

 Width mm

Thickness mm

Glass Fiber Needle Blanket

0.040w/cm.k

350kg/mm²

1.55

7300kg/mm²

35.6N/50MM

97.2N/50MM

100-200kg/cm³

100-1500

3-30
