FB Intumescent Fire Retardant Pillow

FB intumescent fire retardant pillow is a new type of fireproof material for cable, which has a bag surface by using tightly woven and durable glass fiber cloth, and with special fireproof, heat resistant and expanding materials inside. It is non-flammable, and able to resist fire more than 3 hours, which will expand and solidify at high temperature, forming a seal with heat and smoke insulation, good moisture resistance, non-asbestos and other toxic element. It can effectively apply to fire resistance and plugging of hole. Since it is easy to install and dismantle, fire retardant pillow is especially applicable to plugging situation which often need to change or add cables, or being taken as temporary fireproof measures in construction process.

Specification

Model

Length

Width

Thickness

Weight(g)

FB-II720

320

180

35

720

FB-II400

320

180

20

400

Technical Property

Item

Technical Index

  1.Fire Performance(min)

  ≥180

  2.Appearance

  Package Undamaged

  3.Loose Density(kg/m3)

  0.5×103

  4.Water Resistance(d)

  After soaking in water for three days, inner material no obvious change, package integrited without damage

  5.Oil Resistance(d)

  After soaking in oil for three days, inner material no obvious change, package integrited without damage

  6.Compressive Strength(Mpa)

  ≥0.05

  7.Drop Resistance

  Free falling from 5m high onto concrete ground, package undamaged

Usage

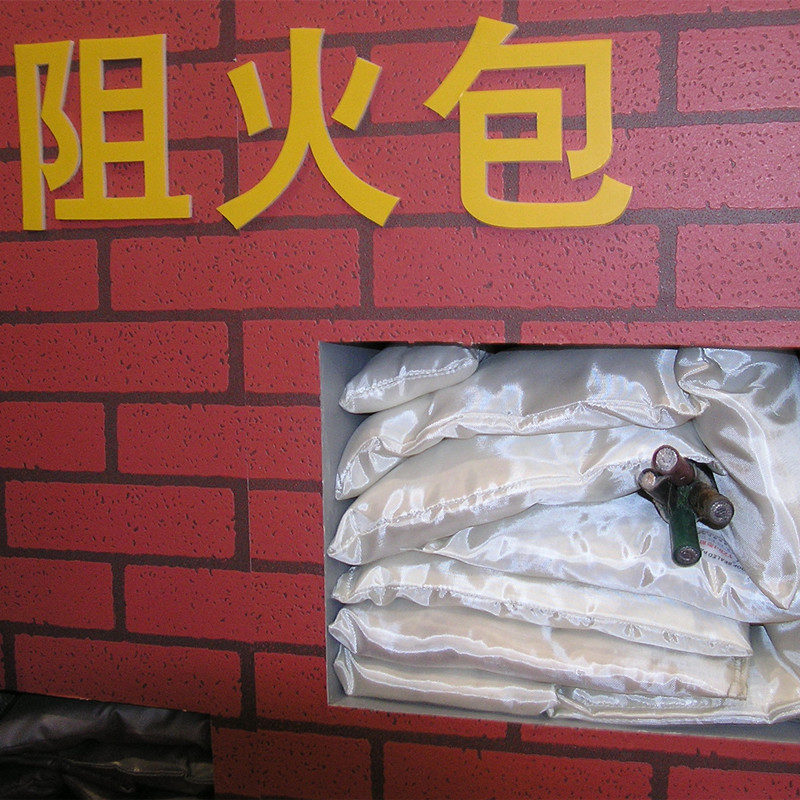

When using fire retardant pillow to plug the cable hole, make necessary order and arrangement of cables into the hole first, then well arrange the fire retardant pillow into the gap between the cables, cable and plugging materials, or cable and floor, using staggered arranging method like bricklaying, and filling up as compactly as possible.

Storage

Fire retardant pillow should be kept in ventilated, dry storehouse, prevent rain.
