Introduction：

Deqing Guotai Fireproof Material Factory, committed to providing personalized design fireproof and thermal insulation products, according to different production needs, negotiate with clients to arrive at a workable and efficient, durable and charge saving heat preservation solution.

Our aim is to take customer demand as the priority, continuous innovation and development.

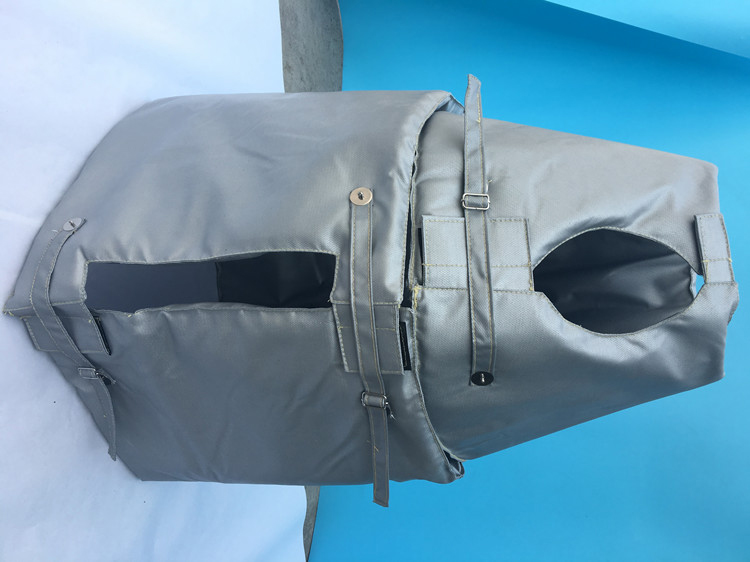

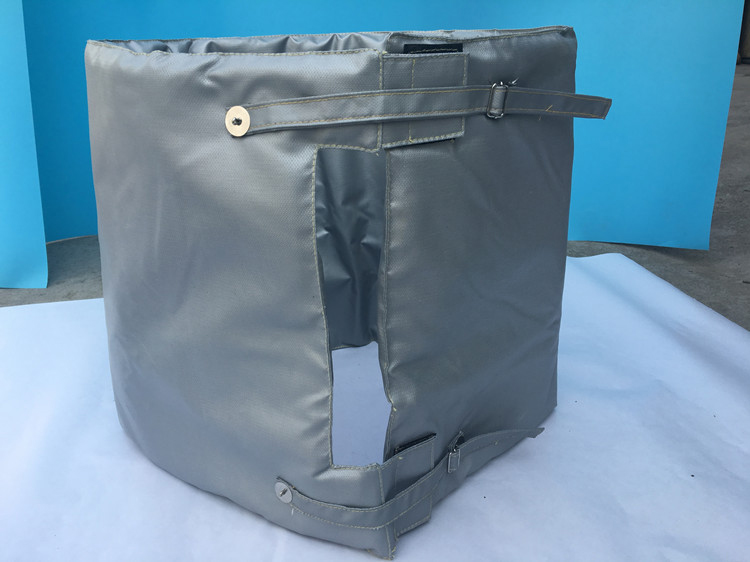

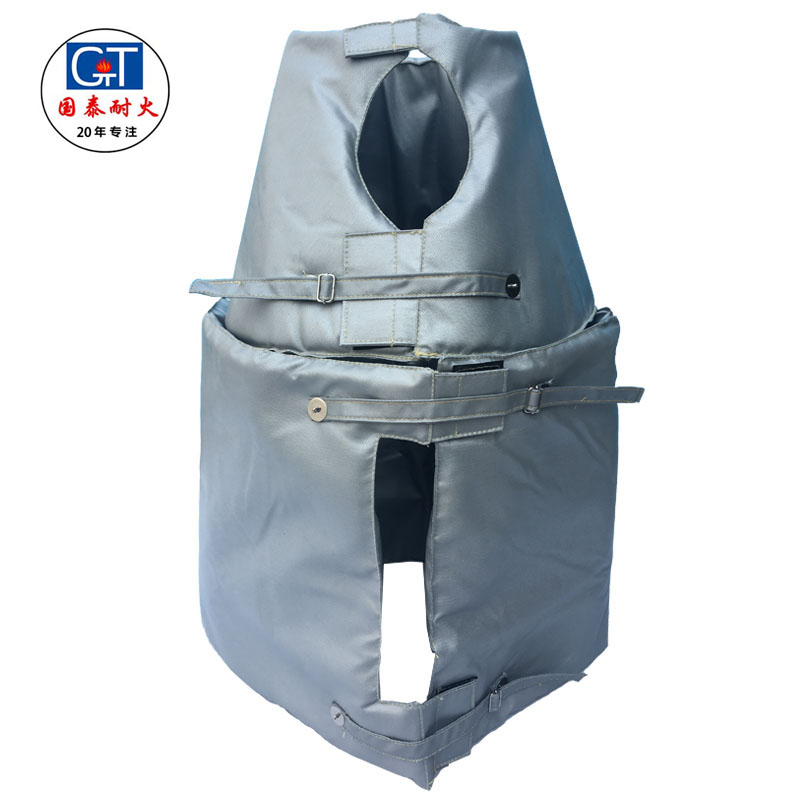

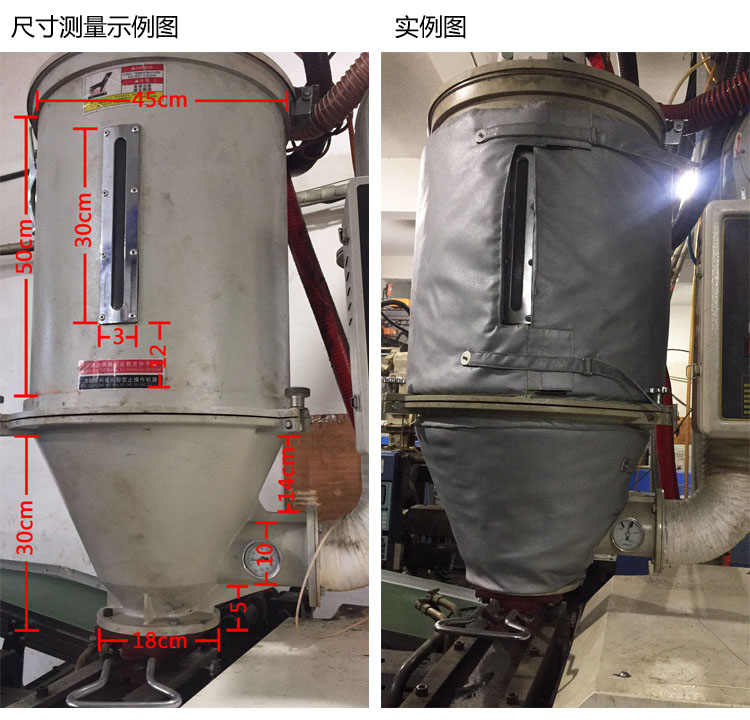

GT thermal insulation sewing products, is carefully designed according to the exact shape and use environment of pipeline or various equipment, produced after mapping and a special process. It can be used for pipelines, cold and hot devices in different temperature and shapes, particularly applicable for pipeline and devices which need regular removal, repair and maintenance, cleaning. The comprehensive economic benefit is good. Currently it’s the ideal choice of the industrial energy saving and environmental protection.

Product Property：

1. Good thermal insulation, use fireproof fiber in the middle heat insulation layer(the whole product like a down jacket), high and low temperature resistance (high temperature 280-1170℃, low temperature -70℃)

2. Good chemical stability, chemical resistant, anti moth, anti-mildew

3. Fireproof and flame retardant (fire grade A - non combustible)

4. Aging and weather resistance

5. Waterproof, oil proof: good hydrophobic performance, anti oil pollution

Characteristics:

1. Good heat insulation

2. Removable, easy to install, convenient to clean the pipeline and devices, convenient to repair and maintain

3. Repeated use, long service life

4. High strength, soft and flexible, easy to bend and bind up

5. We can process non-standard products, customize according to the insulation parts

6. Product adaptation: apply to different temperatures, different shapes of pipeline and equipment for thermal insulation

7. Environmental protection, no pollution: does not contain asbestos or any other harmful substances, completely harmless to people and the environment

8. Product appearance beautiful and neat, surface can be cleaned

9. Improve working thermal environment, prevent scald

Product types and adaptable:( has obvious advantages compared with the traditional heat preservation)

1. Can be repeatedly used (traditional insulation can only be used once), so that it saves more cost and with less waste.

2. Suitable for different shapes of pipes, equipment, more advantages for "special shaped pieces", it can be used everywhere even in the case of traditional insulation can not do(because the traditional heat insulation use "hard materials" processing, not easy for bending deformation)

3. A wide range of spatial adaptation, can also be used in a narrow space(traditional thermal insulation sometimes may not be able to do in the narrow space)

4. Environmental adaptability: more adapted to the "corrosive" environment than the traditional heat insulation. (because the traditional thermal insulation is aluminum or iron sheet surface which is not corrosion resistant)

Technical Index：

1. Thermal conductivity: 0.035W/M∙K - 0.045W/M∙K±0.005 (normal temperature)

2. High and low temperature resistance (high temperature 280-1170℃, low temperature -70℃)

3. Flame retardant: non combustible

4. Density: 100-220Kg/m3

5. Thickness 10-100mm

6. Moisture absorption rate: <5%

Main Application:

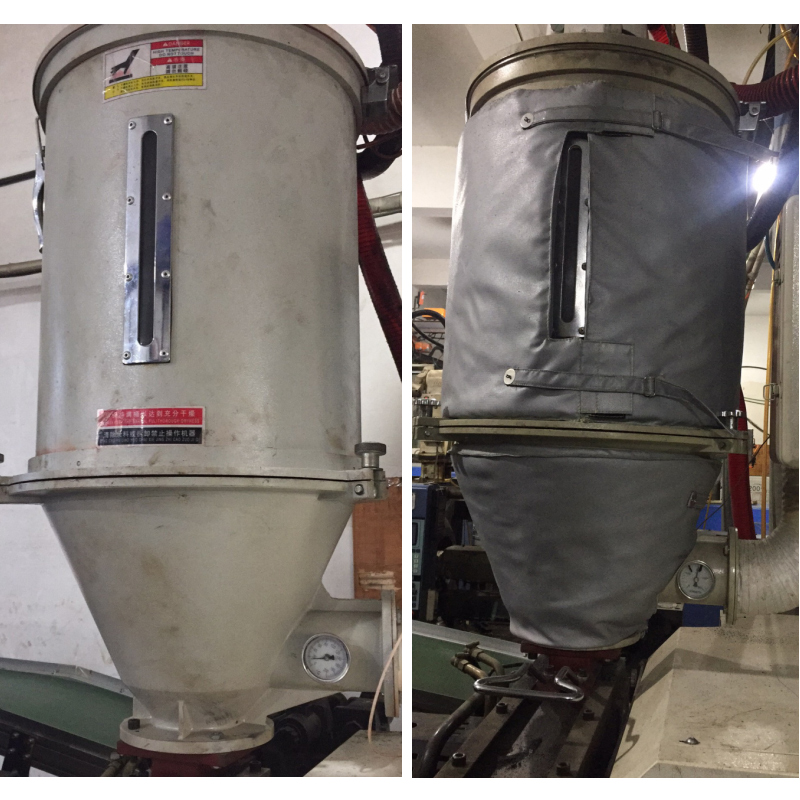

Currently, removable type insulation cover (heat prevention quilt, thermal insulation jacket) is the ideal thermal insulation material for pipeline and equipment. It’s widely used for heat equipment and all kinds of pipeline, HVAC and refrigeration device in industry of petrochemical, chemical engineering, spinning, metallurgy, power, construction, kilns, paper making, pharmacy, ship, etc. For example, Pipeline, elbow, flange, valve, level glass, triplet, chemical reactor, equipment, thermal power and nuclear power steam turbine unit, capped end, pump, instrument box in high temperature environment of steel industry, and other special shapes parts.

Use Attention:

1.Install and remove slowly along the opening direction, don’t be rude operation!

2．Don't touch with barbed items, to avoid puncturing the insulation sleeve.
