Rock Wool Sandwich Wall Panel

Characteristics:

1. Thermal insulation, sound insulation, fire prevention, light weight, waterproof, anti-seismic, decoration etc;

2. Used in medicine, 500℃ below the air purifying biological, electronic engineering, shipbuilding, food, air conditioning, workshop, boiler room, activity room, cold storage, warehouse, office partition and sound insulation, baking equipment insulation.

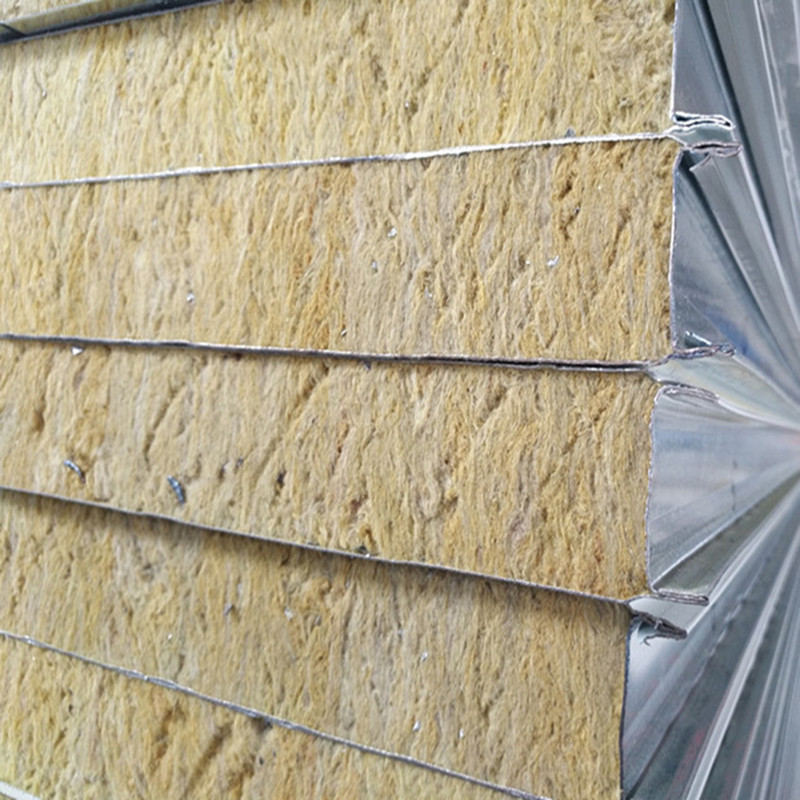

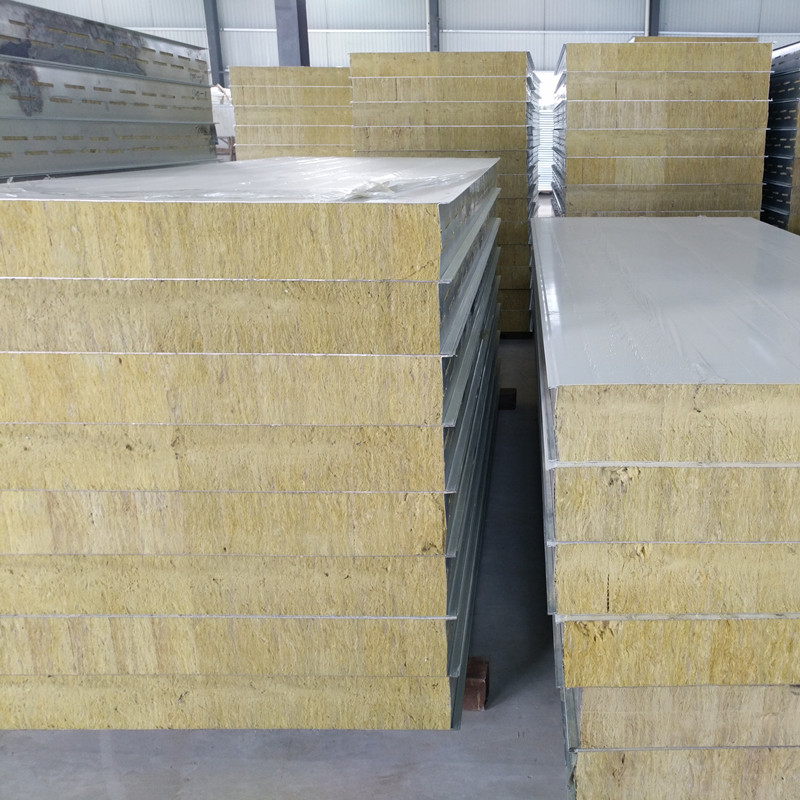

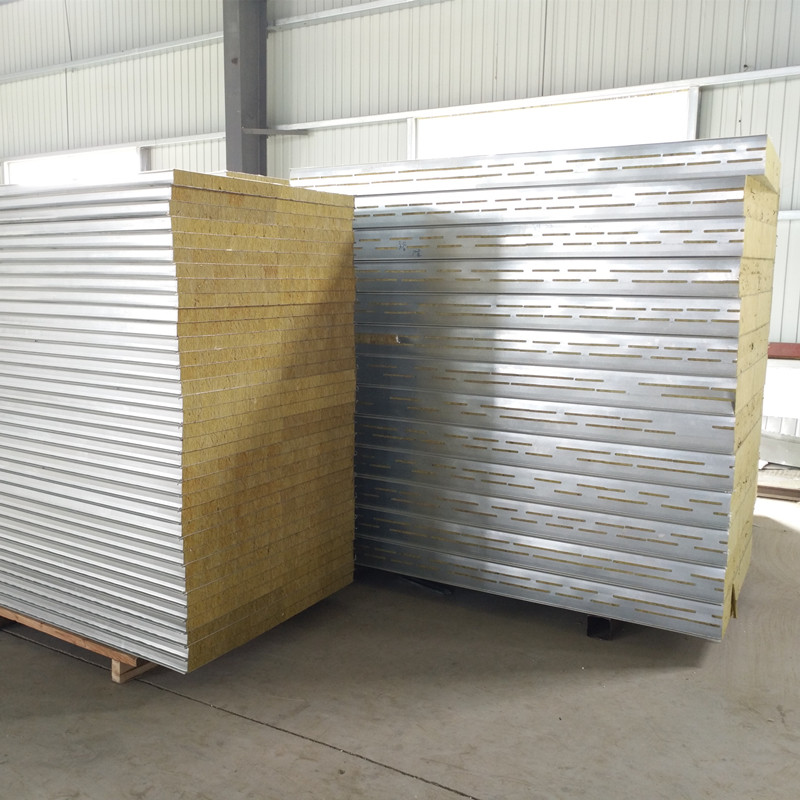

950/1150 rock wool sandwich wall panel

Dimensions

Total thickness

40, 50, 75, 100, 120, 150, 200mm

Width

950/1150mm

Length

Less than 11.8m

External face

Material

Pre-painted galvanised steel

Thickness

0.4-1.0mm

Zinc coating

80g/m2

Corrosion protection

Galvanized

Coating

Polyester

Thickness of coating

20µm

Color

According to the RAL

 Insulation

Material

Rock wool

Thickness

50 75 100 120 150 200 mm

Density

100-150kg/m3

Thermal conductivity

</=0.044w/m.k

Fire rating

A grade

Water absorption

3.9%

Shrink temperature

643°C

Content organics

2.9%

Internal face

Material

Pre-painted galvanised steel

Thickness

0.4-1.0mm

Zinc coating

80g/m2

Corrosion protection

Galvanized

Coating

Polyester

Thickness of coating

5µm

Color

According to RAL
